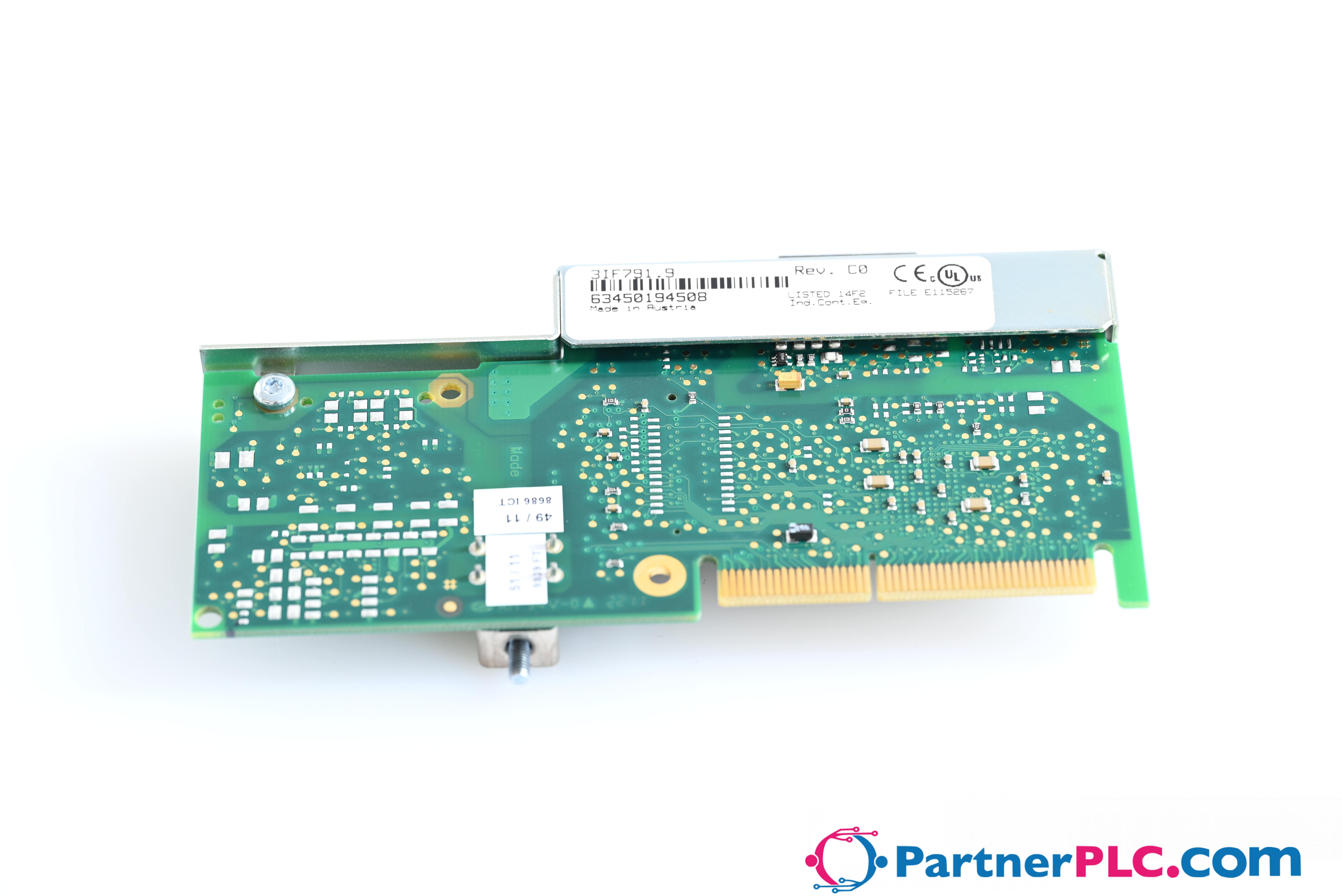

SKU : 3IF791.9Brand : B&RDescription: Material number: 3IF791.9 Description: X2X Link connection aPCI interface module, 1 X2X Link master interface, electrically isolated, order 1x terminal block TB704 separately! State: New Specification : Short description Communication module 1x X2X Link master General information Status indicators Transmit data and status for IF1 Diagnostics Data transfer Yes, using LED status indicator Power consumption 3.3 VDC 0.43 W 5 VDC 0.76 W Total 1.19 W Electrical isolation PLC - IF1 Yes Certifications CE Yes UKCA Yes UL cULus E115267Industrial control equipment EAC Yes KC Yes Interfaces Interface IF1 Fieldbus X2X Link master Variant 4-pin male multipoint connector Distance between 2 stations Max. 100 m Operating conditions Degree of protection per EN 60529 IP20 Ambient conditions Temperature Operation 0 to 60°C Storage -25 to 70°C Relative humidity Operation 5 to 95%, non-condensing Mechanical properties Note Order 1x terminal block TB704 separately. Slot Slot, e.g. in the CP360

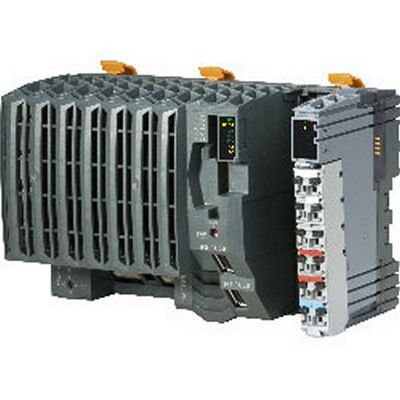

Material number:X20CP1586Description:Intel Atom 1.6 GHz processor with an additional I/O processorOnboard Ethernet, POWERLINK with poll response chaining and USB1 slot for modular interface expansionCompactFlash as removable application memory512 MB DDR2 SDRAMFanlessThe X20CP1586 is a powerful controller for the X20 system. This controller is especially useful for applications that require short cycle times, have to process very large amounts of data or carry out floating point operations. It is clocked at 1.6 GHz and equipped with 512 MB DDR2 SDRAM.USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. The standard Ethernet interface is capable of handling communication in the gigabit range. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).The controller is equipped with one slot available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.
