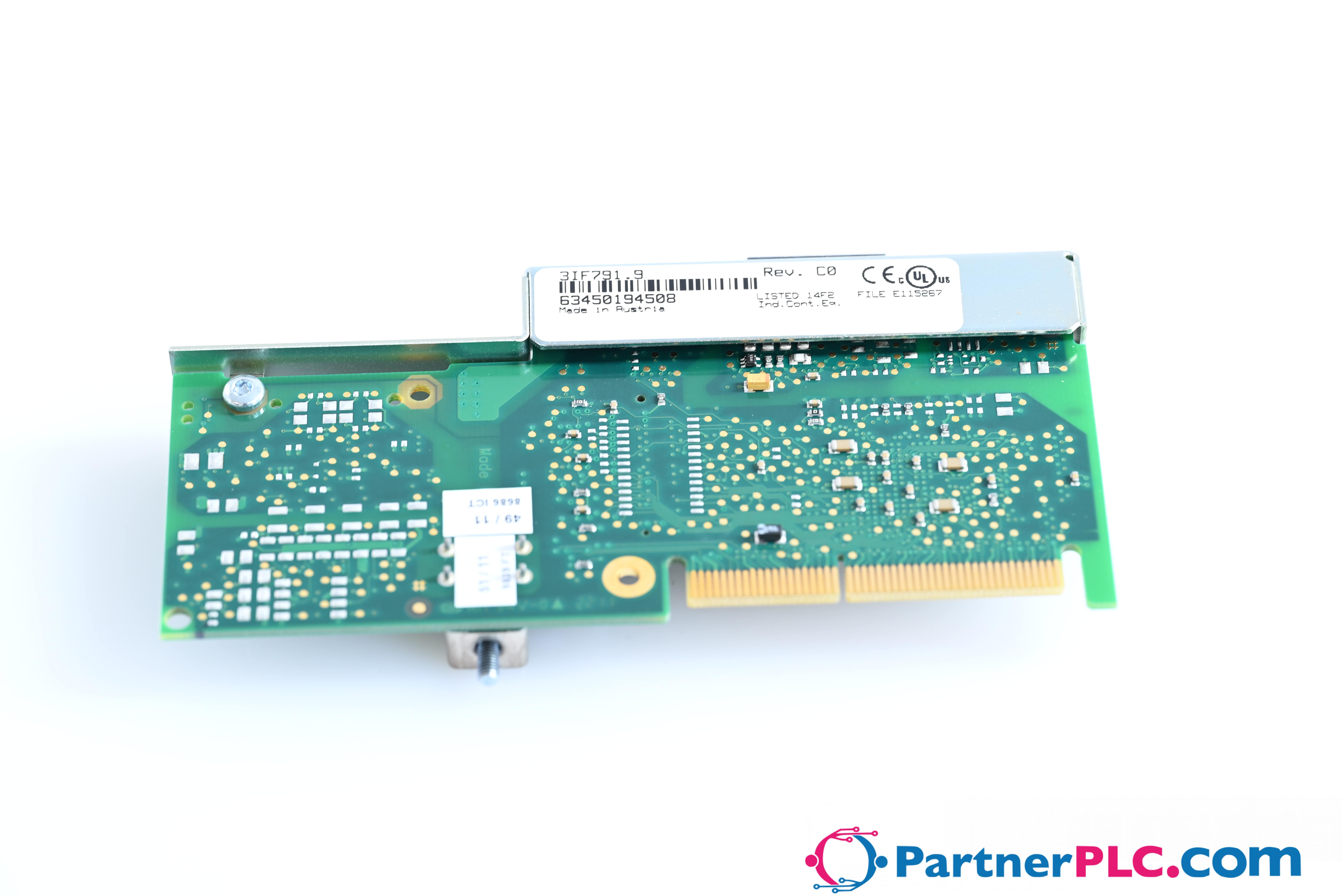

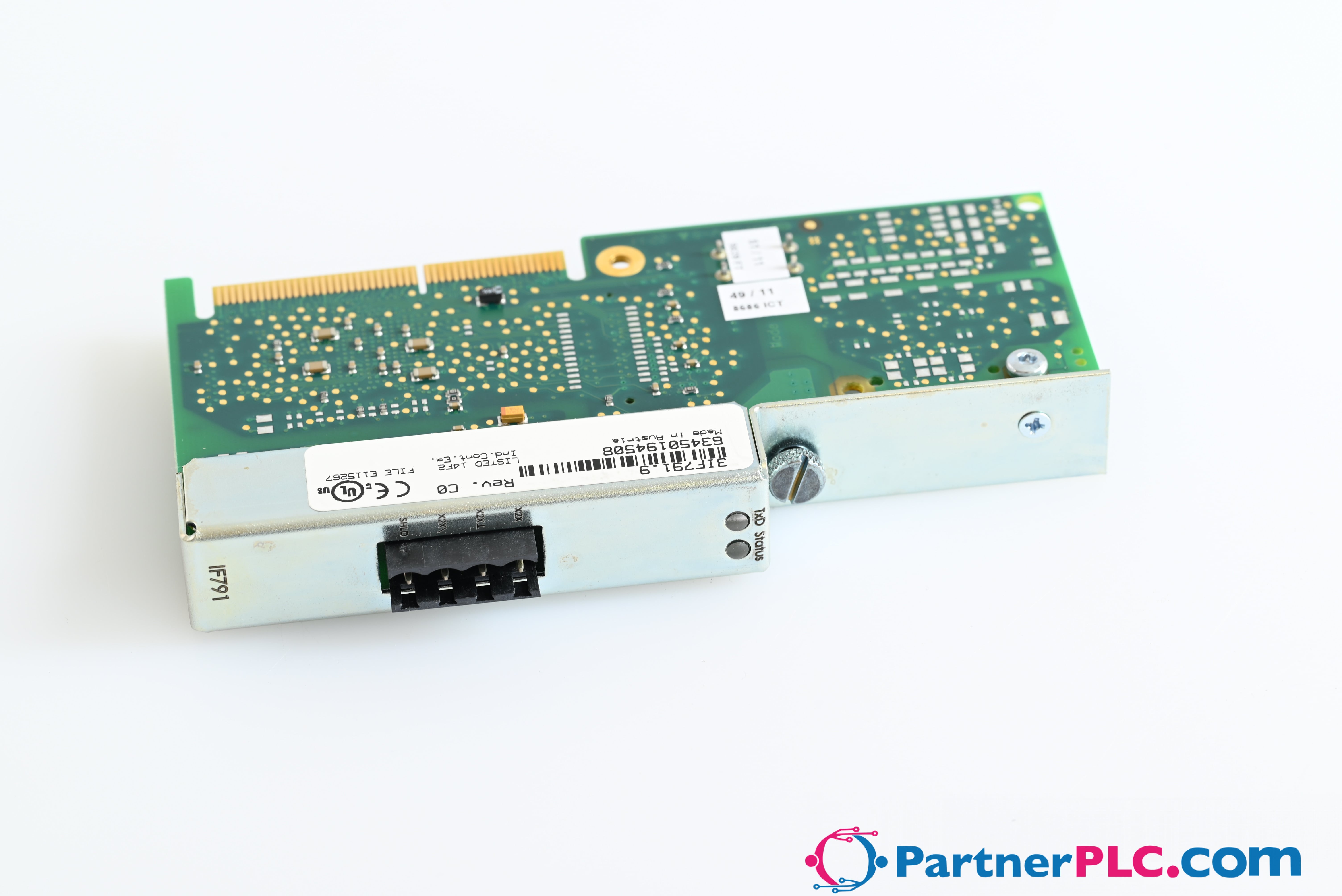

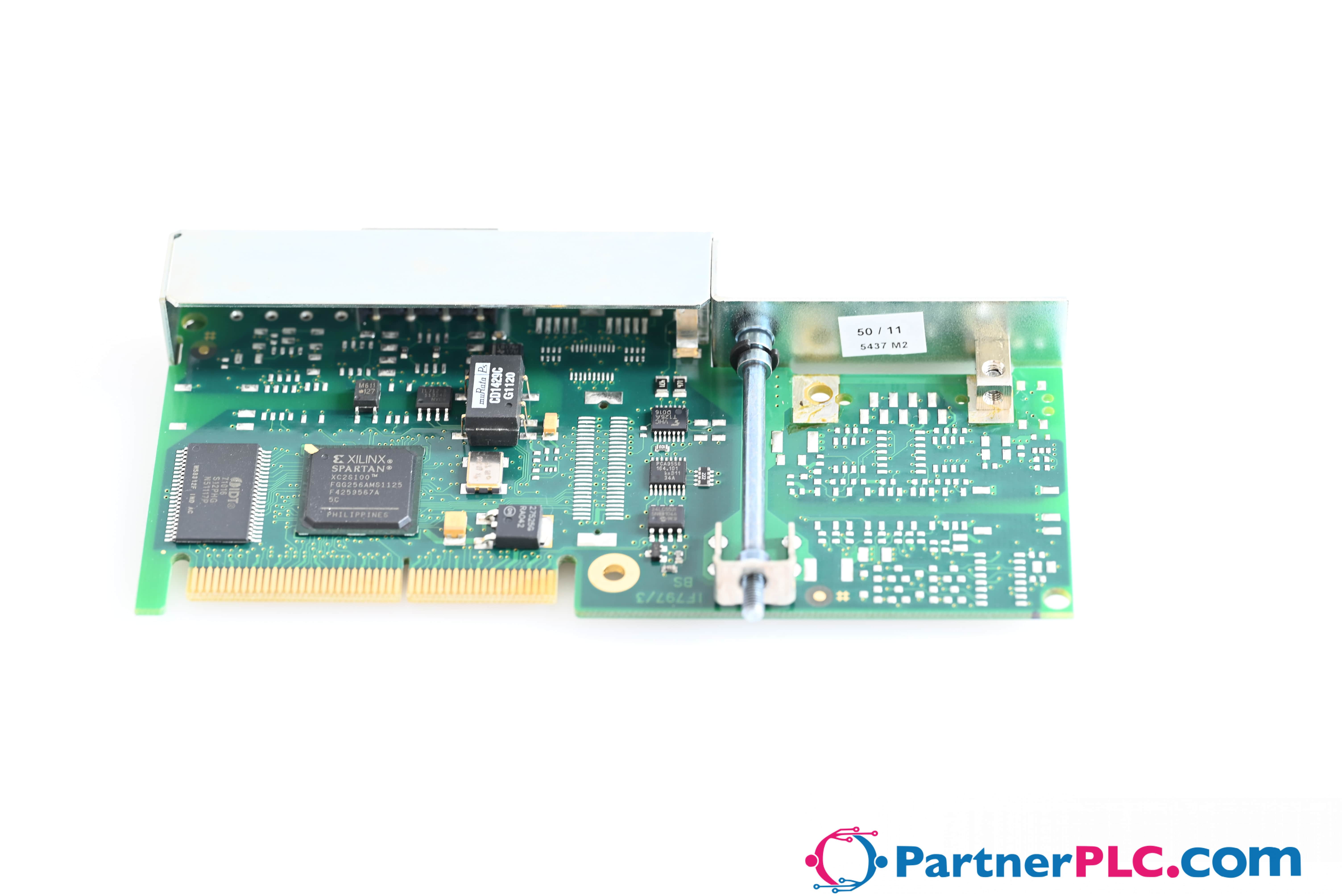

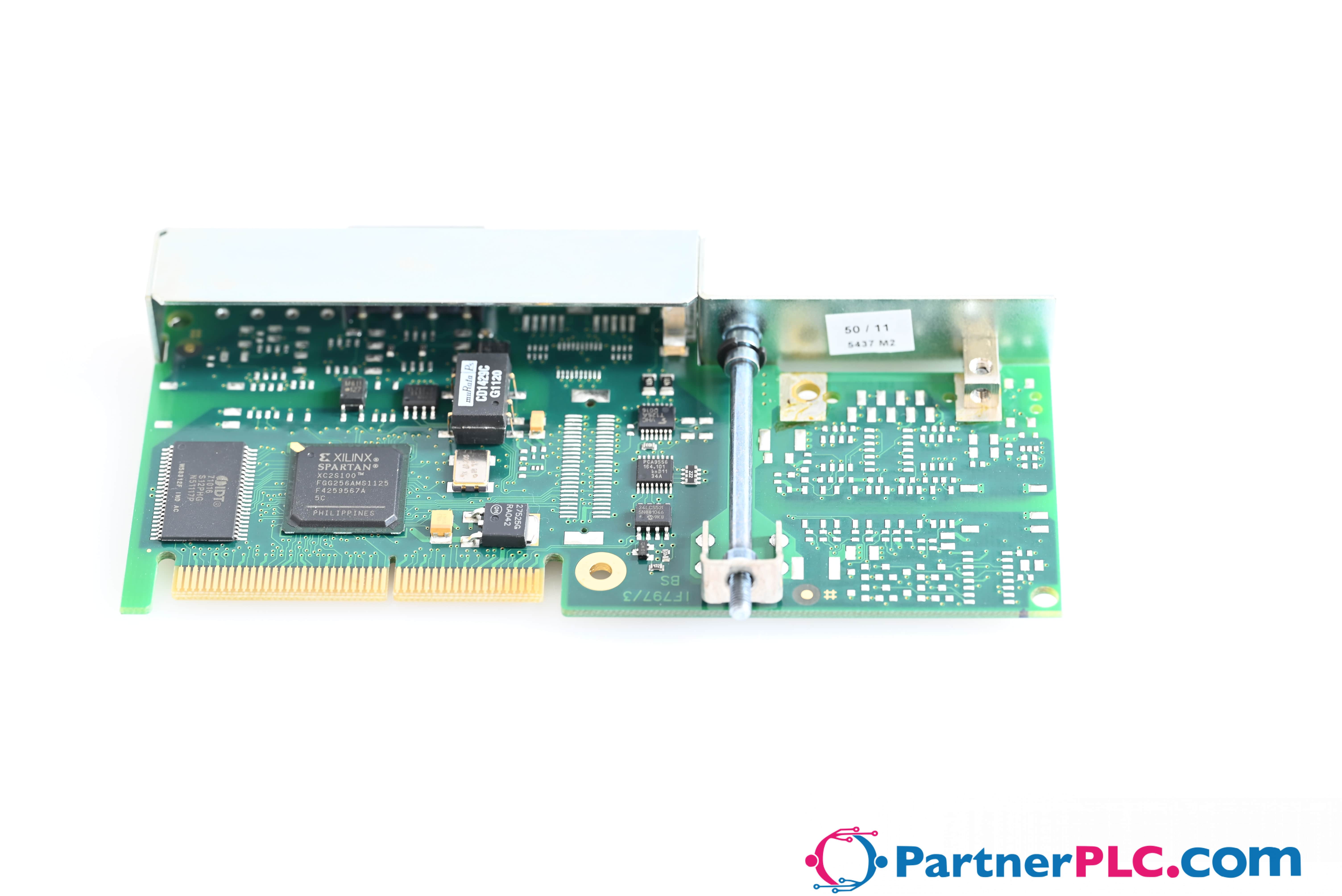

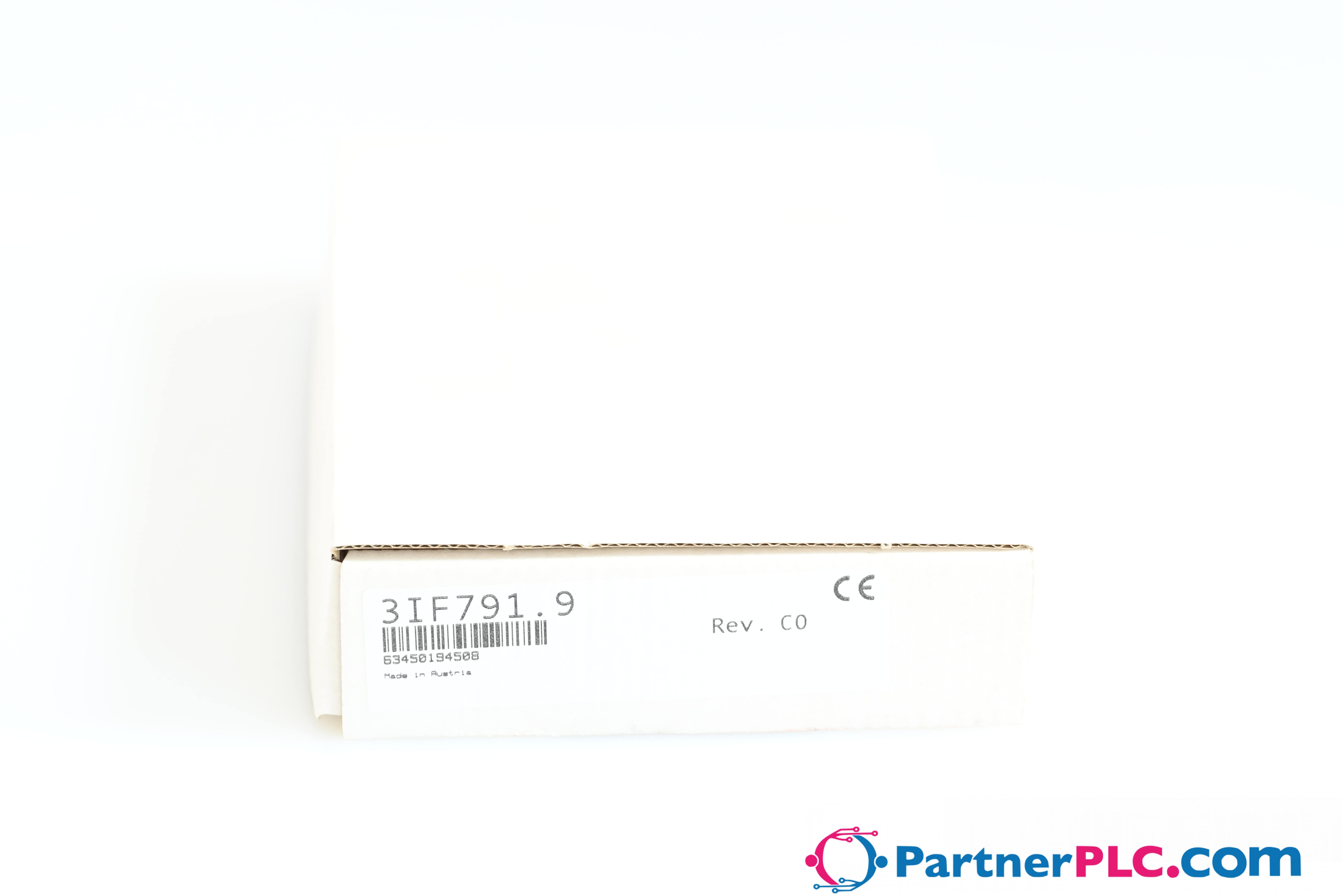

B&R 3IF791.9 NEW Rev. C0

Product information "B&R 3IF791.9 NEW Rev. C0"

SKU : 3IF791.9
Brand : B&R
Description:
Material number:
3IF791.9
Description:
  • X2X Link connection
aPCI interface module, 1 X2X Link master interface, electrically isolated, order 1x terminal block TB704 separately!
State: New
Specification :
Short description
Communication module 1x X2X Link master
General information
Status indicators Transmit data and status for IF1
Diagnostics
Data transfer Yes, using LED status indicator
Power consumption
3.3 VDC 0.43 W
5 VDC 0.76 W
Total 1.19 W
Electrical isolation
PLC - IF1 Yes
Certifications
CE Yes
UKCA Yes
UL cULus E115267
Industrial control equipment
EAC Yes
KC Yes
Interfaces
Interface IF1
Fieldbus X2X Link master
Variant 4-pin male multipoint connector
Distance between 2 stations Max. 100 m
Operating conditions
Degree of protection per EN 60529 IP20
Ambient conditions
Temperature
Operation 0 to 60°C
Storage -25 to 70°C
Relative humidity
Operation 5 to 95%, non-condensing
Mechanical properties
Note Order 1x terminal block TB704 separately.
Slot Slot, e.g. in the CP360
